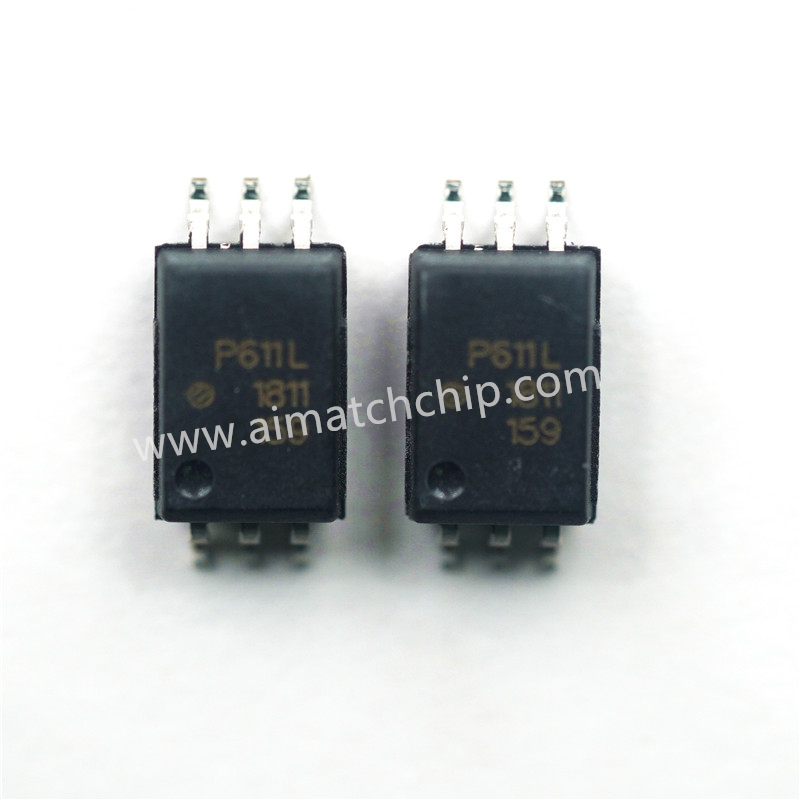

ACPL-P611-000E
Broadcom Limited
Product No:
ACPL-P611-000E
Manufacturer:
Package:
6-SO
Datasheet:
-
Description:
OPTOISO 3.75KV OPN COLLECTOR 6SO
Quantity:
Delivery:
Payment:
In Stock : 5907
Minimum: 1 Multiples: 1
Qty
Unit Price
Ext Price
1
$2.384078
$2.384078
10
$2.14567
$21.4567
50
$1.907262
$95.3631
100
$1.668854
$166.8854
500
$1.621173
$810.5865
1000
$1.589385
$1589.385
Not the price you want? Send RFQ Now and we'll contact you ASAP.
Product Information
Parameter Info
User Guide
| Operating Temperature | -40°C ~ 100°C |
| Input Type | DC |
| Inputs - Side 1/Side 2 | 1/0 |
| Rise / Fall Time (Typ) | 24ns, 10ns |
| Output Type | Open Collector, Schottky Clamped |
| Common Mode Transient Immunity (Min) | 10kV/µs |
| Voltage - Isolation | 3750Vrms |
| Mounting Type | Surface Mount |
| Product Status | Active |
| Supplier Device Package | 6-SO |
| Series | - |
| Data Rate | 10MBd |
| Package / Case | 6-SOIC (0.268", 6.80mm Width) |
| Number of Channels | 1 |
| Voltage - Supply | 4.5V ~ 5.5V |
| Mfr | Broadcom Limited |
| Voltage - Forward (Vf) (Typ) | 1.5V |
| Package | Tube |
| Propagation Delay tpLH / tpHL (Max) | 75ns, 75ns |
| Current - Output / Channel | 50 mA |
| Current - DC Forward (If) (Max) | 20mA |
| Base Product Number | ACPL-P611 |
