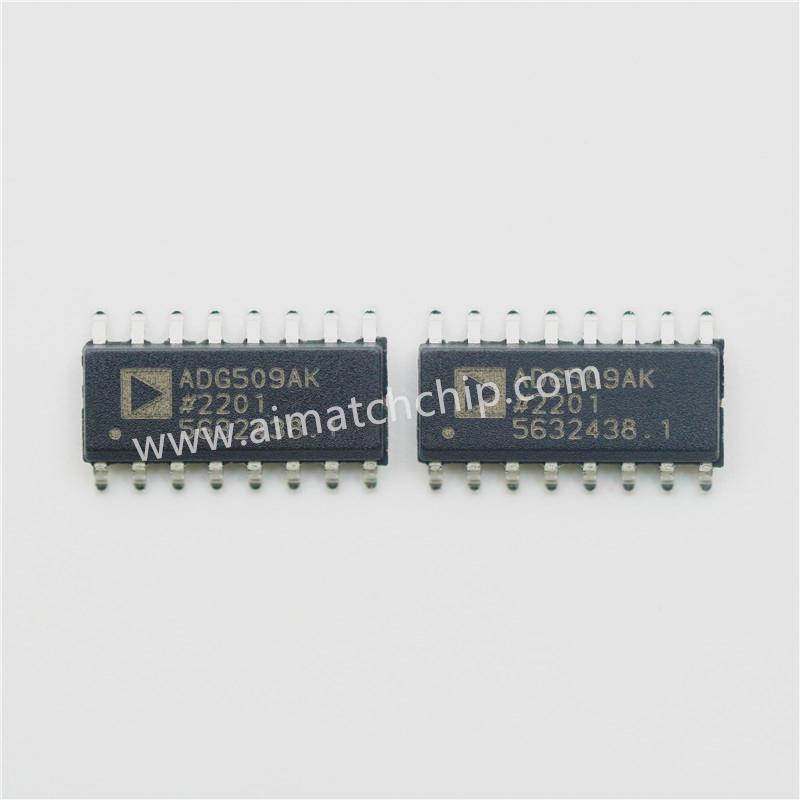

ADG509AKRZ-REEL7
Analog Devices Inc.
Product No:
ADG509AKRZ-REEL7
Manufacturer:
Package:
16-SOIC
Datasheet:
Description:
IC SWITCH SP4T X 2 450OHM 16SOIC
Quantity:
Delivery:
Payment:
In Stock : 11885
Minimum: 1 Multiples: 1
Qty
Unit Price
Ext Price
1
$2.624914
$2.624914
10
$2.362423
$23.62423
50
$2.099931
$104.99655
100
$1.83744
$183.744
500
$1.784942
$892.471
1000
$1.749943
$1749.943
Not the price you want? Send RFQ Now and we'll contact you ASAP.
Product Information
Parameter Info
User Guide
| Operating Temperature | -40°C ~ 85°C (TA) |
| Current - Leakage (IS(off)) (Max) | 1nA |
| Crosstalk | - |
| -3db Bandwidth | - |
| Channel-to-Channel Matching (ΔRon) | 22.5Ohm |
| Mounting Type | Surface Mount |
| Product Status | Active |
| Voltage - Supply, Dual (V±) | ±10.8V ~ 16.5V |
| Supplier Device Package | 16-SOIC |
| Voltage - Supply, Single (V+) | 10.8V ~ 16.5V |
| Series | - |
| Channel Capacitance (CS(off), CD(off)) | 5pF, 11pF |
| Package / Case | 16-SOIC (0.154", 3.90mm Width) |
| On-State Resistance (Max) | 450Ohm |
| Switch Circuit | SP4T |
| Mfr | Analog Devices Inc. |
| Charge Injection | 4pC |
| Multiplexer/Demultiplexer Circuit | 4:1 |
| Number of Circuits | 2 |
| Package | Tape & Reel (TR) |
| Switch Time (Ton, Toff) (Max) | 300ns, 300ns |
| Base Product Number | ADG509 |
