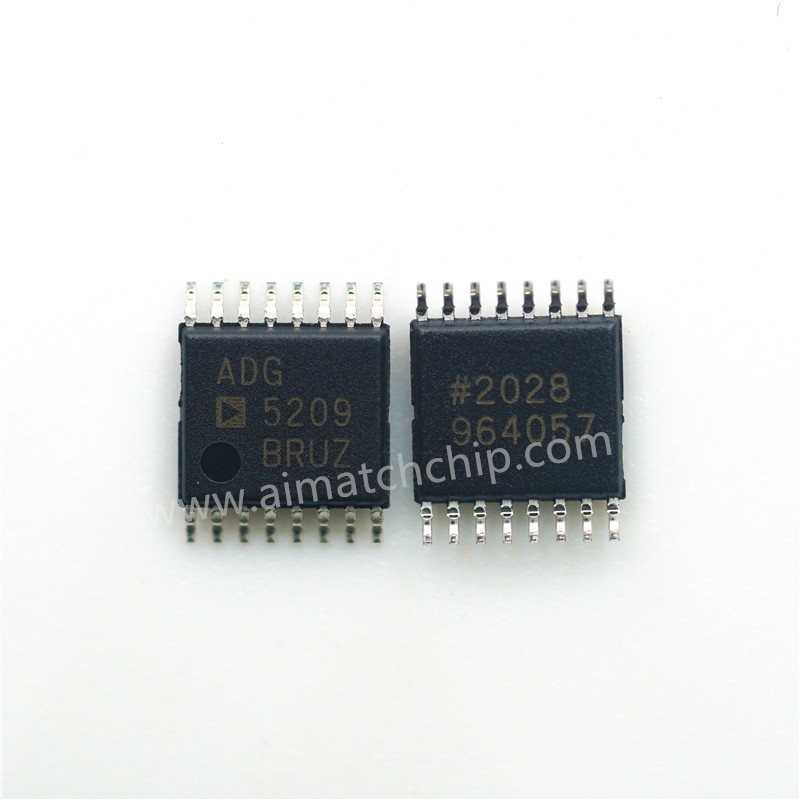

ADG5209BRUZ
Analog Devices Inc.
Product No:
ADG5209BRUZ
Manufacturer:
Package:
16-TSSOP
Datasheet:
Description:
IC SWITCH SP4TX2 160OHM 16TSSOP
Quantity:
Delivery:
Payment:
In Stock : 414
Minimum: 1 Multiples: 1
Qty
Unit Price
Ext Price
1
$4.372977
$4.372977
10
$3.93568
$39.3568
50
$3.498382
$174.9191
100
$3.061084
$306.1084
500
$2.973625
$1486.8125
1000
$2.915318
$2915.318
Not the price you want? Send RFQ Now and we'll contact you ASAP.
Product Information
Parameter Info
User Guide
| Operating Temperature | -40°C ~ 125°C (TA) |
| Current - Leakage (IS(off)) (Max) | 100pA |
| Crosstalk | -90dB @ 1MHz |
| -3db Bandwidth | 130MHz |
| Channel-to-Channel Matching (ΔRon) | 3.5Ohm |
| Mounting Type | Surface Mount |
| Product Status | Active |
| Voltage - Supply, Dual (V±) | ±9V ~ 22V |
| Supplier Device Package | 16-TSSOP |
| Voltage - Supply, Single (V+) | 9V ~ 40V |
| Series | - |
| Channel Capacitance (CS(off), CD(off)) | 2.8pF, 17pF |
| Package / Case | 16-TSSOP (0.173", 4.40mm Width) |
| On-State Resistance (Max) | 160Ohm |
| Switch Circuit | SP4T |
| Mfr | Analog Devices Inc. |
| Charge Injection | 0.4pC |
| Multiplexer/Demultiplexer Circuit | 4:1 |
| Number of Circuits | 2 |
| Package | Tube |
| Switch Time (Ton, Toff) (Max) | 140ns, 185ns |
| Base Product Number | ADG5209 |
