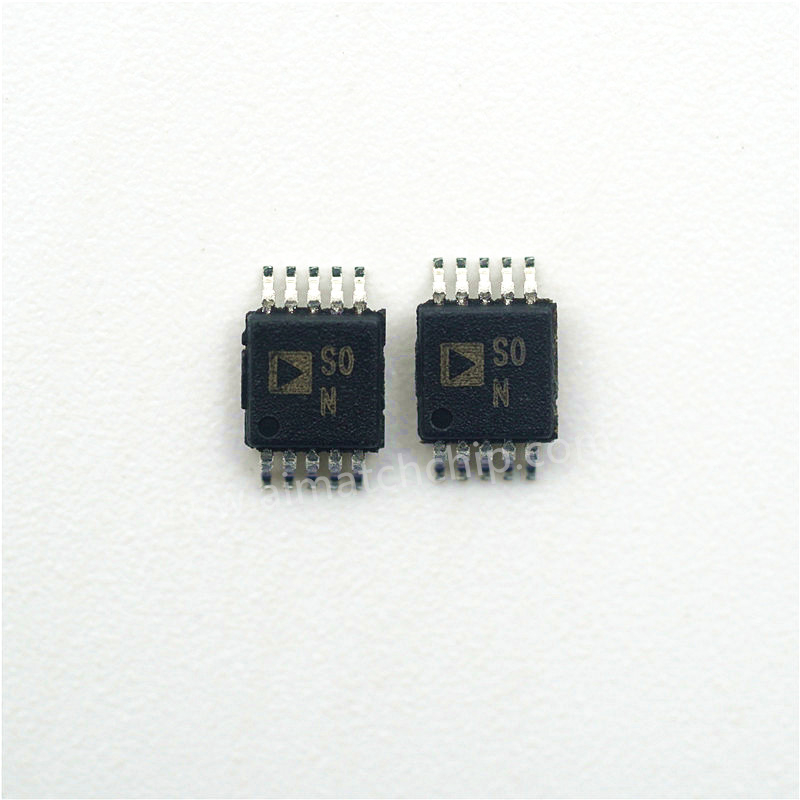

ADG804YRMZ-REEL7
Analog Devices Inc.
Product No:
ADG804YRMZ-REEL7
Manufacturer:
Package:
10-MSOP
Datasheet:
Description:
IC SWITCH SP4TX1 650MOHM 10MSOP
Quantity:
Delivery:
Payment:
In Stock : 4507
Minimum: 1 Multiples: 1
Qty
Unit Price
Ext Price
1
$2.075657
$2.075657
10
$1.868091
$18.68091
50
$1.660526
$83.0263
100
$1.45296
$145.296
500
$1.411447
$705.7235
1000
$1.383771
$1383.771
Not the price you want? Send RFQ Now and we'll contact you ASAP.
Product Information
Parameter Info
User Guide
| Operating Temperature | -40°C ~ 125°C (TA) |
| Current - Leakage (IS(off)) (Max) | 2nA |
| Crosstalk | -75dB @ 100kHz |
| -3db Bandwidth | 33MHz |
| Channel-to-Channel Matching (ΔRon) | 40mOhm |
| Mounting Type | Surface Mount |
| Product Status | Active |
| Voltage - Supply, Dual (V±) | - |
| Supplier Device Package | 10-MSOP |
| Voltage - Supply, Single (V+) | 1.65V ~ 3.6V |
| Series | - |
| Channel Capacitance (CS(off), CD(off)) | 24pF, 105pF |
| Package / Case | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) |
| On-State Resistance (Max) | 650mOhm |
| Switch Circuit | SP4T |
| Mfr | Analog Devices Inc. |
| Charge Injection | 28pC |
| Multiplexer/Demultiplexer Circuit | 4:1 |
| Number of Circuits | 1 |
| Package | Tape & Reel (TR) |
| Switch Time (Ton, Toff) (Max) | 29ns, 6ns |
| Base Product Number | ADG804 |
