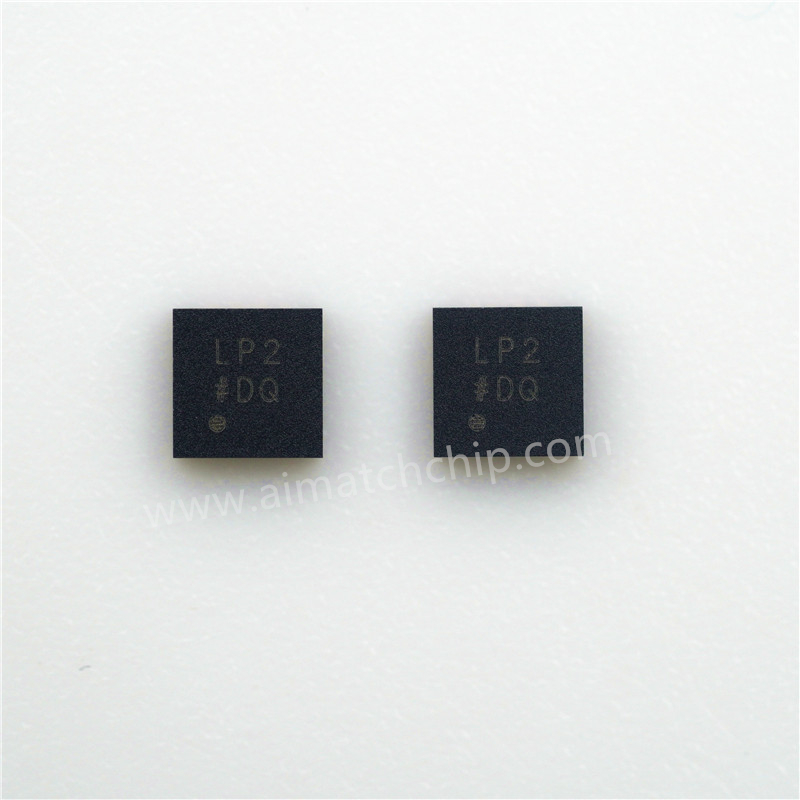

ADM7172ACPZ-R7
Analog Devices Inc.
Product No:
ADM7172ACPZ-R7
Manufacturer:
Package:
8-LFCSP-WD (3x3)
Datasheet:
Description:
IC REG LIN POS ADJ 2A 8LFCSP
Quantity:
Delivery:
Payment:
In Stock : 18533
Minimum: 1 Multiples: 1
Qty
Unit Price
Ext Price
1
$2.257907
$2.257907
10
$2.032116
$20.32116
50
$1.806326
$90.3163
100
$1.580535
$158.0535
500
$1.535377
$767.6885
1000
$1.505271
$1505.271
Not the price you want? Send RFQ Now and we'll contact you ASAP.
Product Information
Parameter Info
User Guide
| Operating Temperature | -40°C ~ 125°C |
| Current - Quiescent (Iq) | 2 mA |
| Output Type | Adjustable |
| Voltage - Input (Max) | 6.5V |
| PSRR | 60db ~ 20dB (100kHz ~ 1MHz) |
| Number of Regulators | 1 |
| Current - Output | 2A |
| Output Configuration | Positive |
| Current - Supply (Max) | 8.7 mA |
| Mounting Type | Surface Mount |
| Voltage - Output (Max) | 6.23V |
| Product Status | Active |
| Supplier Device Package | 8-LFCSP-WD (3x3) |
| Series | - |
| Control Features | Enable, Soft Start |
| Package / Case | 8-WFDFN Exposed Pad, CSP |
| Protection Features | Over Current, Over Temperature |
| Mfr | Analog Devices Inc. |
| Voltage - Output (Min/Fixed) | 1.2V |
| Voltage Dropout (Max) | .27V @ 2A |
| Package | Tape & Reel (TR) |
| Base Product Number | ADM7172 |
