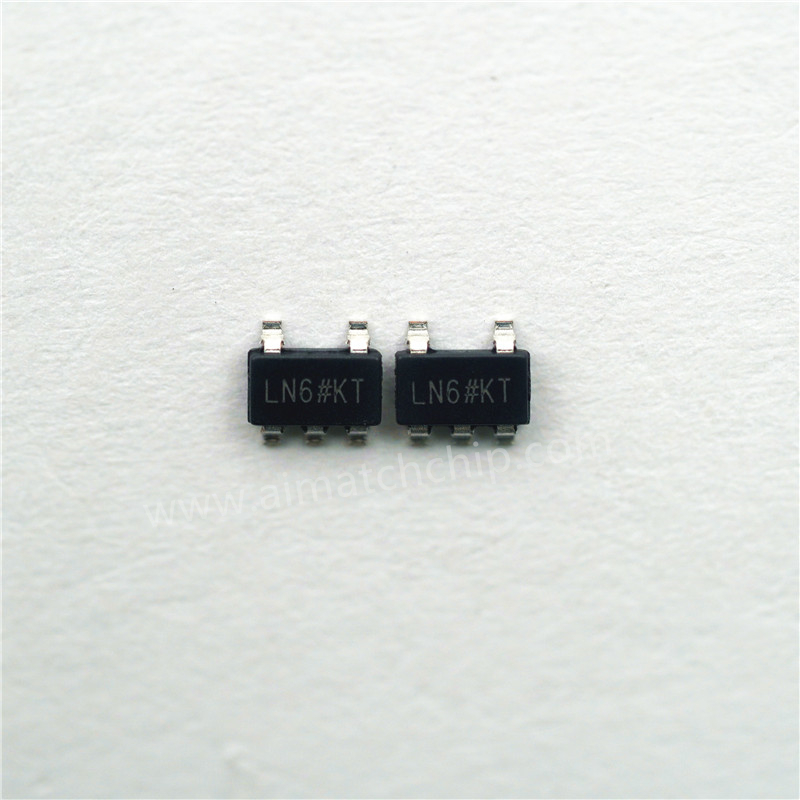

ADP7182AUJZ-R7
Analog Devices Inc.
Product No:
ADP7182AUJZ-R7
Manufacturer:
Package:
TSOT-23-5
Datasheet:
Description:
IC REG LIN NEG ADJ 200MA TSOT23
Quantity:
Delivery:
Payment:
In Stock : 1832
Minimum: 1 Multiples: 1
Qty
Unit Price
Ext Price
1
$2.538514
$2.538514
10
$2.284663
$22.84663
50
$2.030811
$101.54055
100
$1.77696
$177.696
500
$1.72619
$863.095
1000
$1.692343
$1692.343
Not the price you want? Send RFQ Now and we'll contact you ASAP.
Product Information
Parameter Info
User Guide
| Operating Temperature | -40°C ~ 125°C |
| Current - Quiescent (Iq) | 53 µA |
| Output Type | Adjustable |
| Voltage - Input (Max) | -28V |
| PSRR | 66dB ~ 45dB (10kHz ~ 1MHz) |
| Number of Regulators | 1 |
| Current - Output | 200mA |
| Output Configuration | Negative |
| Current - Supply (Max) | 850 µA |
| Mounting Type | Surface Mount |
| Voltage - Output (Max) | -27.64V |
| Product Status | Active |
| Supplier Device Package | TSOT-23-5 |
| Series | - |
| Control Features | Enable |
| Package / Case | SOT-23-5 Thin, TSOT-23-5 |
| Protection Features | Over Current, Over Temperature |
| Mfr | Analog Devices Inc. |
| Voltage - Output (Min/Fixed) | -1.22V |
| Voltage Dropout (Max) | 0.36V @ 200mA |
| Package | Tape & Reel (TR) |
| Base Product Number | ADP7182 |
