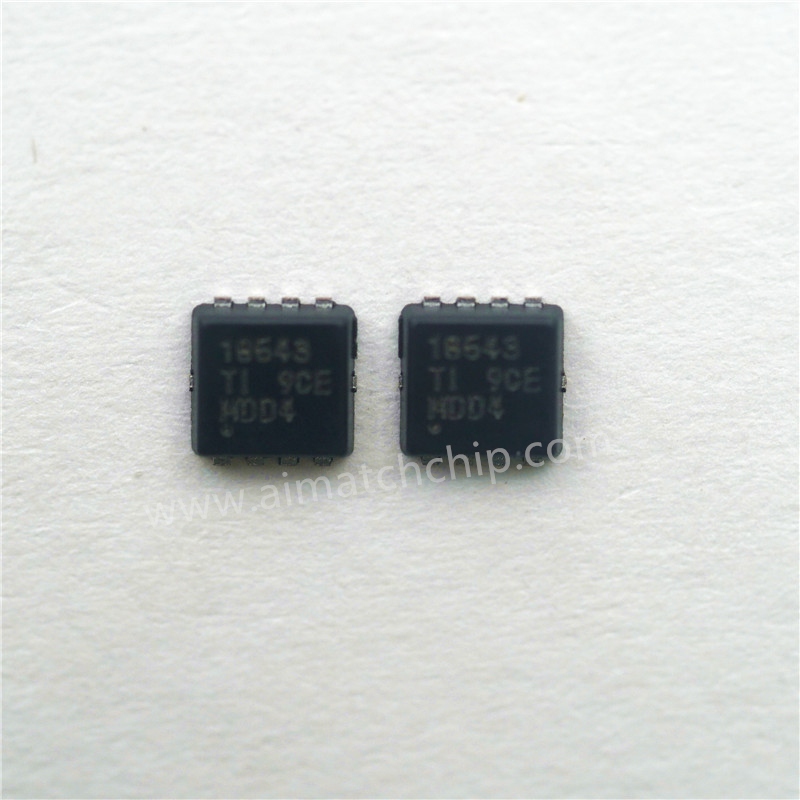

CSD18543Q3A
Texas Instruments
Product No:
CSD18543Q3A
Manufacturer:
Package:
8-VSONP (3x3.3)
Datasheet:
-
Description:
MOSFET N-CH 60V 60A 8VSON
Quantity:
Delivery:
Payment:
In Stock : 7060
Minimum: 1 Multiples: 1
Qty
Unit Price
Ext Price
1
$0.2888
$0.2888
10
$0.2527
$2.527
50
$0.2166
$10.83
100
$0.19855
$19.855
500
$0.189525
$94.7625
1000
$0.1805
$180.5
Not the price you want? Send RFQ Now and we'll contact you ASAP.
Product Information
Parameter Info
User Guide
| Operating Temperature | -55°C ~ 150°C (TJ) |
| FET Feature | Standard |
| Input Capacitance (Ciss) (Max) @ Vds | 1150 pF @ 30 V |
| FET Type | N-Channel |
| Gate Charge (Qg) (Max) @ Vgs | 14.5 nC @ 10 V |
| Mounting Type | Surface Mount |
| Rds On (Max) @ Id, Vgs | 9.9mOhm @ 12A, 10V |
| Product Status | Active |
| Vgs(th) (Max) @ Id | 2.7V @ 250µA |
| Supplier Device Package | 8-VSONP (3x3.3) |
| Drain to Source Voltage (Vdss) | 60 V |
| Power Dissipation (Max) | 66W (Tc) |
| Series | NexFET™ |
| Package / Case | 8-PowerVDFN |
| Technology | MOSFET (Metal Oxide) |
| Current - Continuous Drain (Id) @ 25°C | 60A (Tc) |
| Mfr | Texas Instruments |
| Vgs (Max) | ±20V |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Package | Tape & Reel (TR) |
| Base Product Number | CSD18543 |
