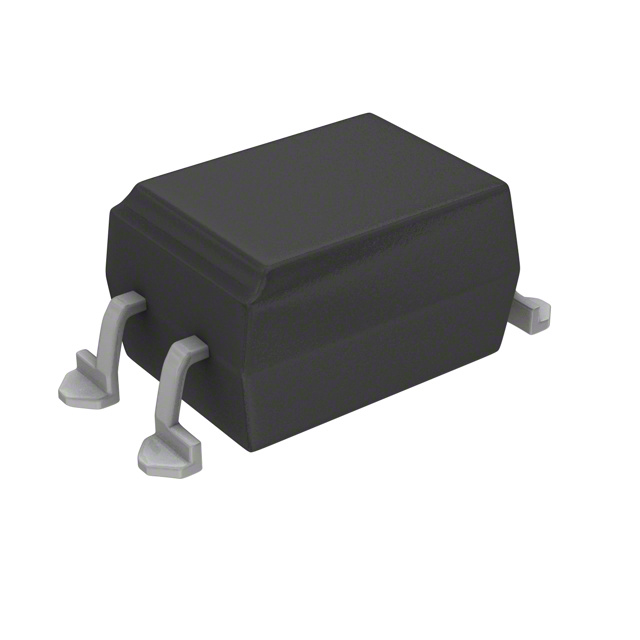

EL814S1(A)(TA)-V
Everlight Electronics Co Ltd
Product No:
EL814S1(A)(TA)-V
Manufacturer:
Package:
4-SMD
Datasheet:
-
Description:
OPTOISOLTR 5KV TRANSISTOR 4-SMD
Quantity:
Delivery:
Payment:
In Stock : 3944
Minimum: 1 Multiples: 1
Qty
Unit Price
Ext Price
1
$0.260064
$0.260064
10
$0.227556
$2.27556
50
$0.195048
$9.7524
100
$0.178794
$17.8794
500
$0.170667
$85.3335
1000
$0.16254
$162.54
Not the price you want? Send RFQ Now and we'll contact you ASAP.
Product Information
Parameter Info
User Guide
| Operating Temperature | -55°C ~ 110°C |
| Input Type | AC, DC |
| Current Transfer Ratio (Max) | 150% @ 1mA |
| Rise / Fall Time (Typ) | 7µs, 11µs |
| Output Type | Transistor |
| Voltage - Isolation | 5000Vrms |
| Mounting Type | Surface Mount |
| Voltage - Output (Max) | 80V |
| Product Status | Active |
| Supplier Device Package | 4-SMD |
| Series | - |
| Current Transfer Ratio (Min) | 50% @ 1mA |
| Package / Case | 4-SMD, Gull Wing |
| Number of Channels | 1 |
| Mfr | Everlight Electronics Co Ltd |
| Voltage - Forward (Vf) (Typ) | 1.2V |
| Package | Tape & Reel (TR) |
| Vce Saturation (Max) | 200mV |
| Turn On / Turn Off Time (Typ) | - |
| Current - Output / Channel | - |
| Current - DC Forward (If) (Max) | 60 mA |
| Base Product Number | EL814 |
