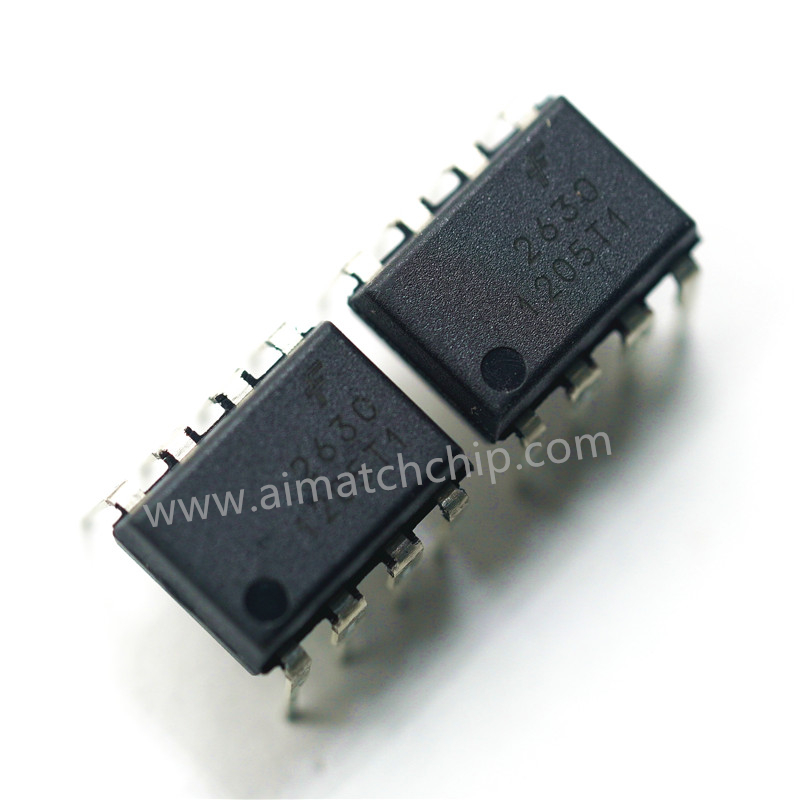

HCPL-2630
Broadcom Limited
Product No:
HCPL-2630
Manufacturer:
Package:
8-DIP
Datasheet:
-
Description:
OPTOISO 3.75KV 2CH OPEN COL 8DIP
Quantity:
Delivery:
Payment:
In Stock : 1714
Minimum: 1 Multiples: 1
Qty
Unit Price
Ext Price
1
$4.60782
$4.60782
10
$4.147038
$41.47038
50
$3.686256
$184.3128
100
$3.225474
$322.5474
500
$3.133318
$1566.659
1000
$3.07188
$3071.88
Not the price you want? Send RFQ Now and we'll contact you ASAP.
Product Information
Parameter Info
User Guide
| Operating Temperature | -40°C ~ 85°C |
| Input Type | DC |
| Inputs - Side 1/Side 2 | 2/0 |
| Rise / Fall Time (Typ) | 24ns, 10ns |
| Output Type | Open Collector, Schottky Clamped |
| Common Mode Transient Immunity (Min) | 5kV/µs |
| Voltage - Isolation | 3750Vrms |
| Mounting Type | Through Hole |
| Product Status | Active |
| Supplier Device Package | 8-DIP |
| Series | - |
| Data Rate | 10MBd |
| Package / Case | 8-DIP (0.300", 7.62mm) |
| Number of Channels | 2 |
| Voltage - Supply | 4.5V ~ 5.5V |
| Mfr | Broadcom Limited |
| Voltage - Forward (Vf) (Typ) | 1.5V |
| Package | Tube |
| Propagation Delay tpLH / tpHL (Max) | 100ns, 100ns |
| Current - Output / Channel | 50 mA |
| Current - DC Forward (If) (Max) | 15mA |
| Base Product Number | HCPL-2630 |
