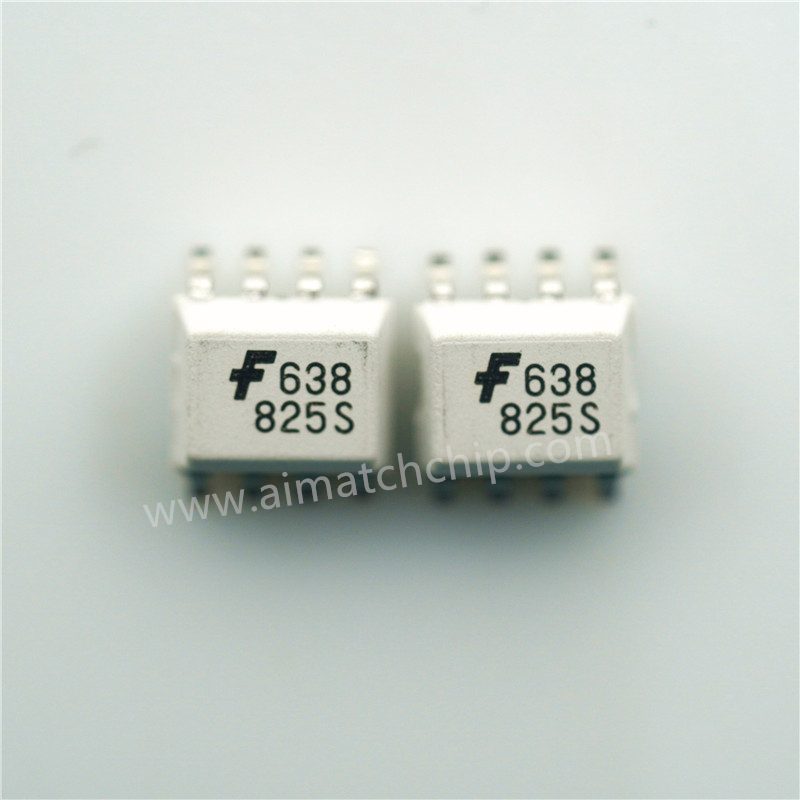

HCPL0638R2
onsemi
Product No:
HCPL0638R2
Manufacturer:
Package:
8-SOIC
Datasheet:
-
Description:
OPTOISO 3.75KV 2CH OPEN COLL 8SO
Quantity:
Delivery:
Payment:
In Stock : 136
Minimum: 1 Multiples: 1
Qty
Unit Price
Ext Price
1
$1.6875
$1.6875
10
$1.51875
$15.1875
50
$1.35
$67.5
100
$1.18125
$118.125
500
$1.1475
$573.75
1000
$1.125
$1125
Not the price you want? Send RFQ Now and we'll contact you ASAP.
Product Information
Parameter Info
User Guide
| Operating Temperature | -40°C ~ 85°C |
| Input Type | DC |
| Inputs - Side 1/Side 2 | 2/0 |
| Rise / Fall Time (Typ) | 17ns, 5ns |
| Output Type | Open Collector, Schottky Clamped |
| Common Mode Transient Immunity (Min) | 10kV/µs |
| Voltage - Isolation | 3750Vrms |
| Mounting Type | Surface Mount |
| Product Status | Active |
| Supplier Device Package | 8-SOIC |
| Series | - |
| Data Rate | 10Mbps |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Number of Channels | 2 |
| Voltage - Supply | 4.5V ~ 5.5V |
| Mfr | onsemi |
| Voltage - Forward (Vf) (Typ) | 1.75V (Max) |
| Package | Tape & Reel (TR) |
| Propagation Delay tpLH / tpHL (Max) | 75ns, 75ns |
| Current - Output / Channel | 15 mA |
| Current - DC Forward (If) (Max) | - |
| Base Product Number | HCPL0638 |
