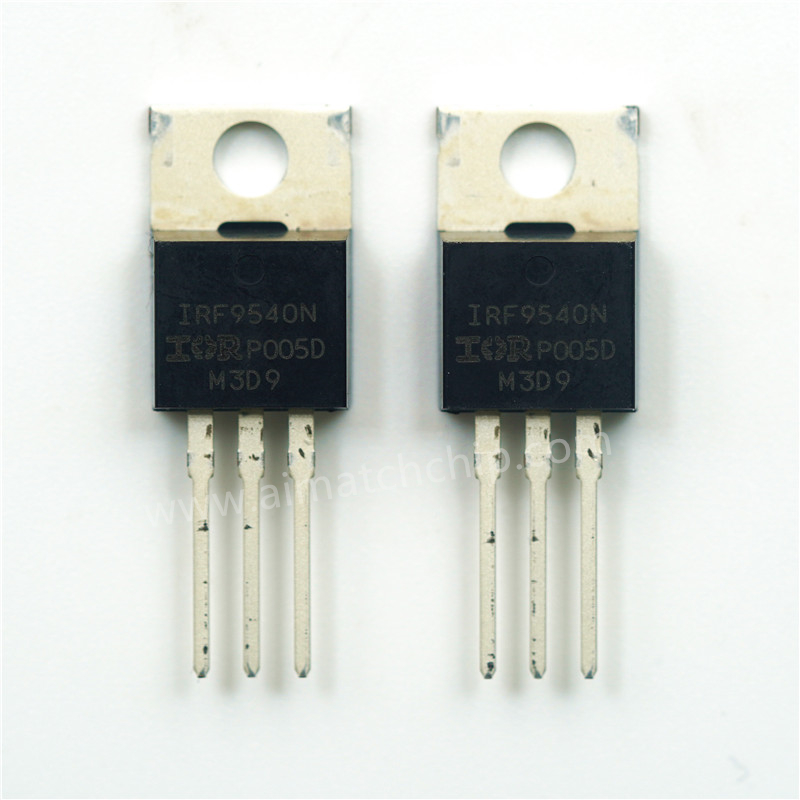

IRF9540NPBF
Infineon Technologies
Product No:
IRF9540NPBF
Manufacturer:
Package:
TO-220AB
Datasheet:
-
Description:
MOSFET P-CH 100V 23A TO220AB
Quantity:
Delivery:
Payment:
In Stock : 109027
Minimum: 1 Multiples: 1
Qty
Unit Price
Ext Price
1
$0.269897
$0.269897
10
$0.23616
$2.3616
50
$0.202423
$10.12115
100
$0.185554
$18.5554
500
$0.17712
$88.56
1000
$0.168686
$168.686
Not the price you want? Send RFQ Now and we'll contact you ASAP.
Product Information
Parameter Info
User Guide
| Operating Temperature | -55°C ~ 150°C (TJ) |
| FET Feature | - |
| Input Capacitance (Ciss) (Max) @ Vds | 1300 pF @ 25 V |
| FET Type | P-Channel |
| Gate Charge (Qg) (Max) @ Vgs | 97 nC @ 10 V |
| Mounting Type | Through Hole |
| Rds On (Max) @ Id, Vgs | 117mOhm @ 11A, 10V |
| Product Status | Active |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Supplier Device Package | TO-220AB |
| Drain to Source Voltage (Vdss) | 100 V |
| Power Dissipation (Max) | 140W (Tc) |
| Series | HEXFET® |
| Package / Case | TO-220-3 |
| Technology | MOSFET (Metal Oxide) |
| Current - Continuous Drain (Id) @ 25°C | 23A (Tc) |
| Mfr | Infineon Technologies |
| Vgs (Max) | ±20V |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Package | Tube |
| Base Product Number | IRF9540 |
