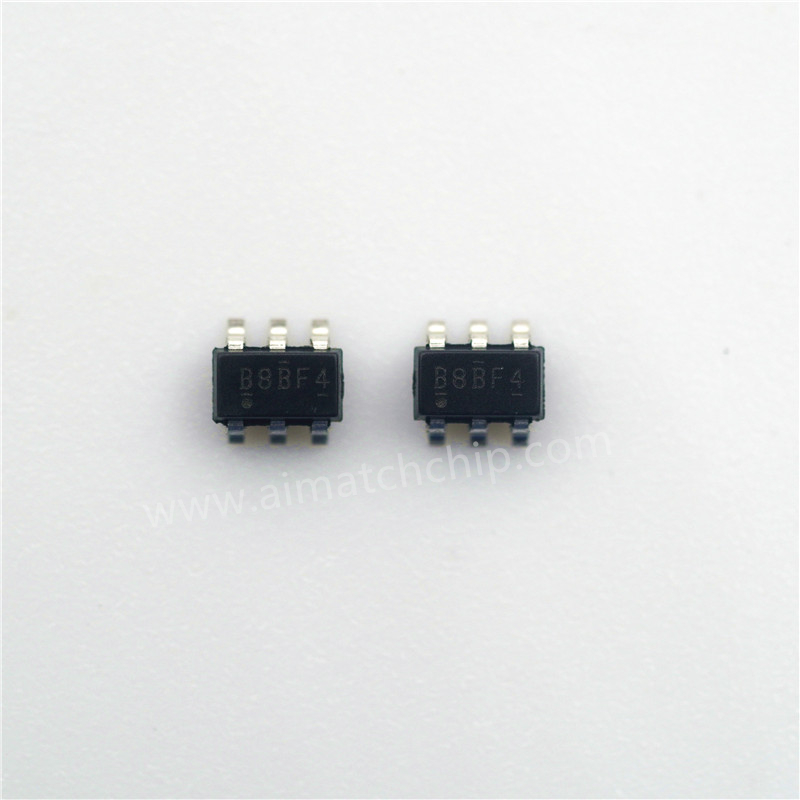

IRLMS1503TRPBF
Infineon Technologies
Product No:
IRLMS1503TRPBF
Manufacturer:
Package:
Micro6™(TSOP-6)
Datasheet:
-
Description:
MOSFET N-CH 30V 3.2A MICRO6
Quantity:
Delivery:
Payment:
In Stock : 1144
Minimum: 1 Multiples: 1
Qty
Unit Price
Ext Price
1
$0.182928
$0.182928
10
$0.160062
$1.60062
50
$0.137196
$6.8598
100
$0.125763
$12.5763
500
$0.120047
$60.0235
1000
$0.11433
$114.33
Not the price you want? Send RFQ Now and we'll contact you ASAP.
Product Information
Parameter Info
User Guide
| Operating Temperature | -55°C ~ 150°C (TJ) |
| FET Feature | - |
| Input Capacitance (Ciss) (Max) @ Vds | 210 pF @ 25 V |
| FET Type | N-Channel |
| Gate Charge (Qg) (Max) @ Vgs | 9.6 nC @ 10 V |
| Mounting Type | Surface Mount |
| Rds On (Max) @ Id, Vgs | 100mOhm @ 2.2A, 10V |
| Product Status | Active |
| Vgs(th) (Max) @ Id | 1V @ 250µA |
| Supplier Device Package | Micro6™(TSOP-6) |
| Drain to Source Voltage (Vdss) | 30 V |
| Power Dissipation (Max) | 1.7W (Ta) |
| Series | HEXFET® |
| Package / Case | SOT-23-6 |
| Technology | MOSFET (Metal Oxide) |
| Current - Continuous Drain (Id) @ 25°C | 3.2A (Ta) |
| Mfr | Infineon Technologies |
| Vgs (Max) | ±20V |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Package | Tape & Reel (TR) |
| Base Product Number | IRLMS1503 |
