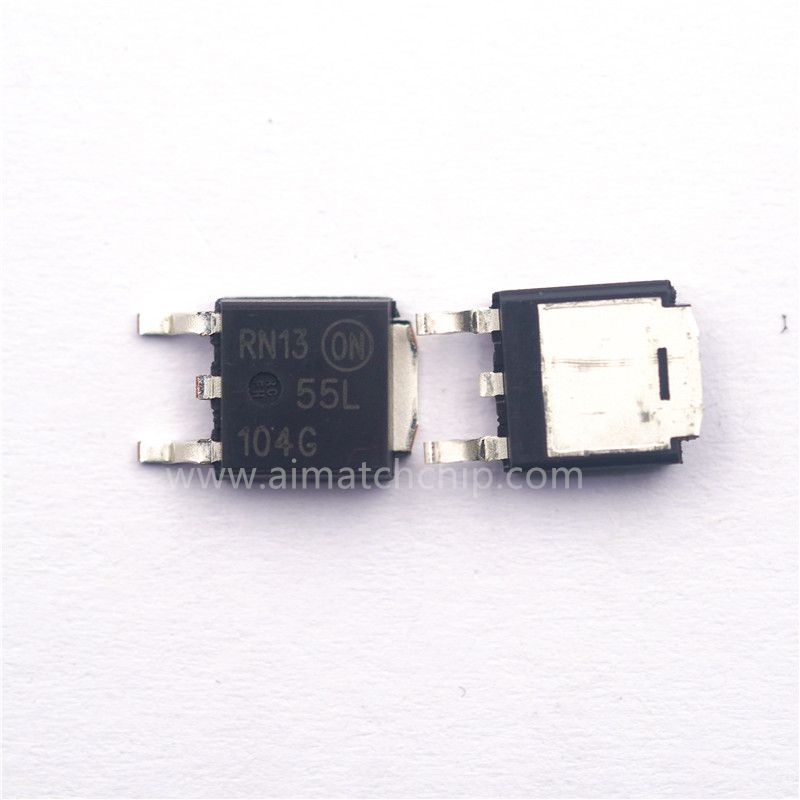

NTD3055L104T4G
onsemi
Product No:
NTD3055L104T4G
Manufacturer:
Package:
DPAK
Datasheet:
Description:
MOSFET N-CH 60V 12A DPAK
Quantity:
Delivery:
Payment:
In Stock : 28546
Minimum: 1 Multiples: 1
Qty
Unit Price
Ext Price
1
$0.47616
$0.47616
10
$0.41664
$4.1664
50
$0.35712
$17.856
100
$0.32736
$32.736
500
$0.31248
$156.24
1000
$0.2976
$297.6
Not the price you want? Send RFQ Now and we'll contact you ASAP.
Product Information
Parameter Info
User Guide
| Operating Temperature | -55°C ~ 175°C (TJ) |
| FET Feature | - |
| Input Capacitance (Ciss) (Max) @ Vds | 440 pF @ 25 V |
| FET Type | N-Channel |
| Gate Charge (Qg) (Max) @ Vgs | 20 nC @ 5 V |
| Mounting Type | Surface Mount |
| Rds On (Max) @ Id, Vgs | 104mOhm @ 6A, 5V |
| Product Status | Active |
| Vgs(th) (Max) @ Id | 2V @ 250µA |
| Supplier Device Package | DPAK |
| Drain to Source Voltage (Vdss) | 60 V |
| Power Dissipation (Max) | 1.5W (Ta), 48W (Tj) |
| Series | - |
| Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 |
| Technology | MOSFET (Metal Oxide) |
| Current - Continuous Drain (Id) @ 25°C | 12A (Ta) |
| Mfr | onsemi |
| Vgs (Max) | ±15V |
| Drive Voltage (Max Rds On, Min Rds On) | 5V |
| Package | Tape & Reel (TR) |
| Base Product Number | NTD3055 |
