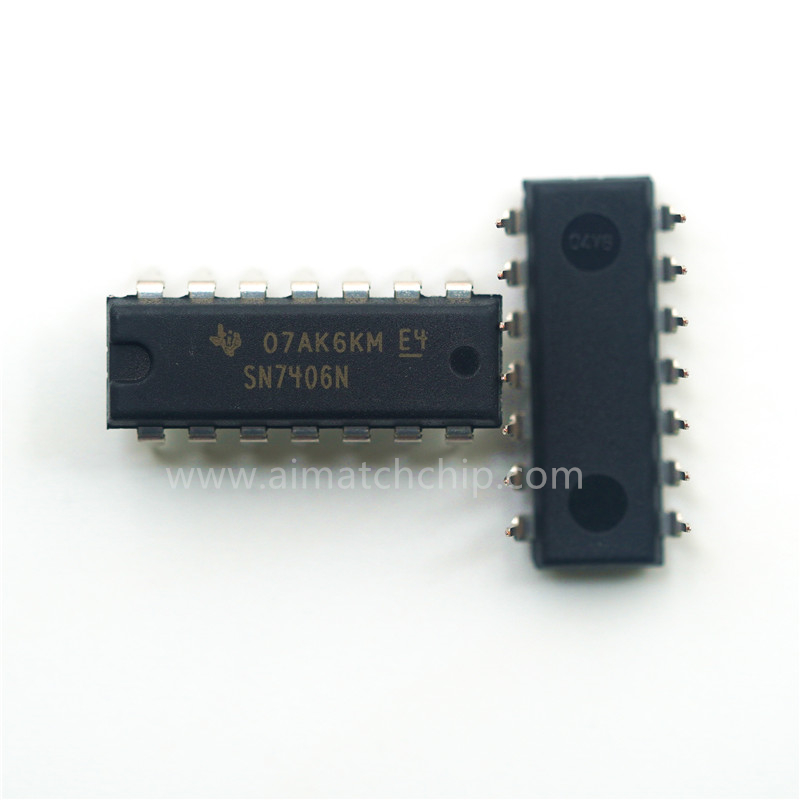

SN7406N
Texas Instruments
Product No:
SN7406N
Manufacturer:
Package:
14-PDIP
Datasheet:
-
Description:
IC INV OPEN COL 6CH 1-IN 14DIP
Quantity:
Delivery:
Payment:
In Stock : 5211
Minimum: 1 Multiples: 1
Qty
Unit Price
Ext Price
1
$0.825
$0.825
10
$0.7425
$7.425
50
$0.66
$33
100
$0.5775
$57.75
500
$0.561
$280.5
1000
$0.55
$550
Not the price you want? Send RFQ Now and we'll contact you ASAP.
Product Information
Parameter Info
User Guide
| Operating Temperature | 0°C ~ 70°C |
| Max Propagation Delay @ V, Max CL | 23ns @ 5V, 15pF |
| Logic Type | Inverter |
| Mounting Type | Through Hole |
| Input Logic Level - Low | 0.8V |
| Product Status | Active |
| Supplier Device Package | 14-PDIP |
| Series | 7400 |
| Package / Case | 14-DIP (0.300", 7.62mm) |
| Voltage - Supply | 4.75V ~ 5.25V |
| Input Logic Level - High | 2V |
| Number of Inputs | 1 |
| Mfr | Texas Instruments |
| Features | Open Collector |
| Number of Circuits | 6 |
| Package | Tube |
| Base Product Number | SN7406 |
| Current - Output High, Low | -, 40mA |
