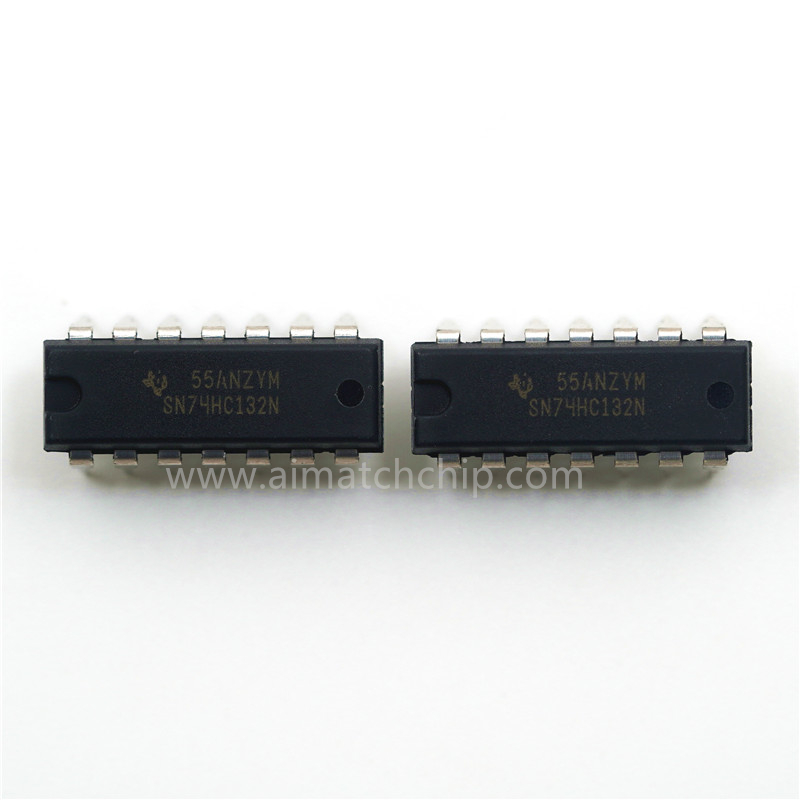

SN74HC132N
Texas Instruments
Product No:
SN74HC132N
Manufacturer:
Package:
14-PDIP
Datasheet:
-
Description:
IC GATE NAND 4CH 2IN 14DIP
Quantity:
Delivery:
Payment:
In Stock : 8342
Minimum: 1 Multiples: 1
Qty
Unit Price
Ext Price
1
$0.403749
$0.403749
10
$0.35328
$3.5328
50
$0.302811
$15.14055
100
$0.277577
$27.7577
500
$0.26496
$132.48
1000
$0.252343
$252.343
Not the price you want? Send RFQ Now and we'll contact you ASAP.
Product Information
Parameter Info
User Guide
| Operating Temperature | -40°C ~ 85°C |
| Max Propagation Delay @ V, Max CL | 21ns @ 6V, 50pF |
| Logic Type | NAND Gate |
| Mounting Type | Through Hole |
| Input Logic Level - Low | 0.3V ~ 1.2V |
| Product Status | Active |
| Supplier Device Package | 14-PDIP |
| Series | 74HC |
| Package / Case | 14-DIP (0.300", 7.62mm) |
| Voltage - Supply | 2V ~ 6V |
| Input Logic Level - High | 1.5V ~ 4.2V |
| Number of Inputs | 2 |
| Mfr | Texas Instruments |
| Features | Schmitt Trigger |
| Number of Circuits | 4 |
| Package | Tube |
| Current - Quiescent (Max) | 2 µA |
| Base Product Number | 74HC132 |
| Current - Output High, Low | 5.2mA, 5.2mA |
