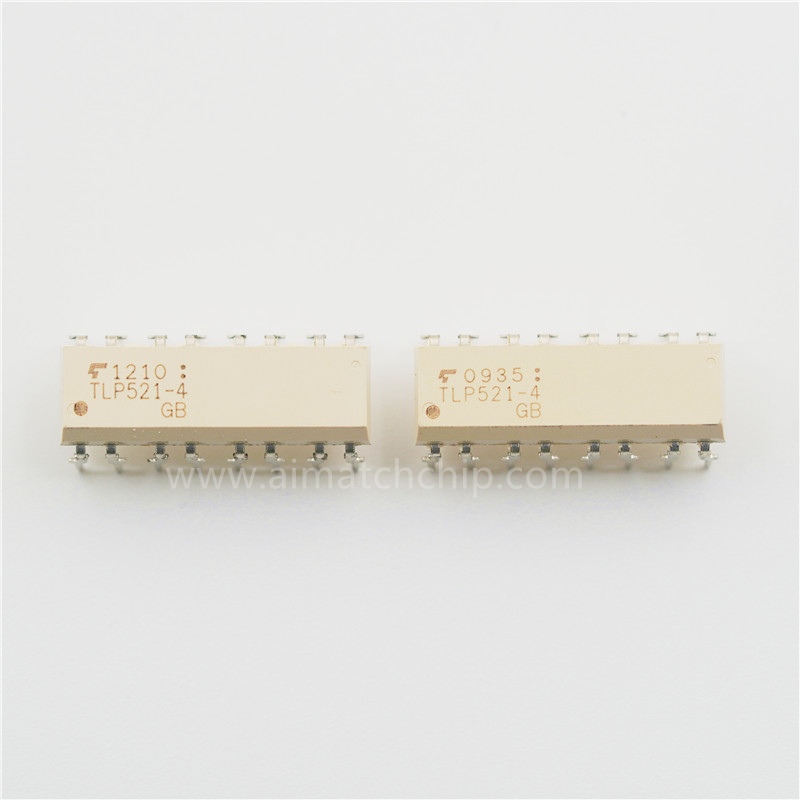

TLP521-4GB
Isocom Components 2004 LTD
Product No:
TLP521-4GB
Manufacturer:
Package:
16-DIP
Datasheet:
-
Description:
16PIN TRANSISTOR OUTPUT, QUAD OP
Quantity:
Delivery:
Payment:
In Stock : 39134
Minimum: 1 Multiples: 1
Qty
Unit Price
Ext Price
1
$1.123571
$1.123571
10
$1.011214
$10.11214
50
$0.898857
$44.94285
100
$0.7865
$78.65
500
$0.764029
$382.0145
1000
$0.749048
$749.048
Not the price you want? Send RFQ Now and we'll contact you ASAP.
Product Information
Parameter Info
User Guide
| Operating Temperature | -30°C ~ 100°C |
| Current Transfer Ratio (Max) | 600% @ 1mA |
| Input Type | DC |
| Rise / Fall Time (Typ) | 4µs, 3µs |
| Output Type | Transistor |
| Voltage - Isolation | 5300Vrms |
| Voltage - Output (Max) | 55V |
| Mounting Type | Through Hole |
| Product Status | Active |
| Supplier Device Package | 16-DIP |
| Series | TLP521-4 |
| Current Transfer Ratio (Min) | 100% @ 1mA |
| Package / Case | 16-DIP (0.300", 7.62mm) |
| Number of Channels | 4 |
| Mfr | Isocom Components 2004 LTD |
| Voltage - Forward (Vf) (Typ) | 1.15V |
| Package | Tube |
| Turn On / Turn Off Time (Typ) | 3µs, 3µs |
| Vce Saturation (Max) | 400mV |
| Current - Output / Channel | 50mA |
| Current - DC Forward (If) (Max) | 50 mA |
