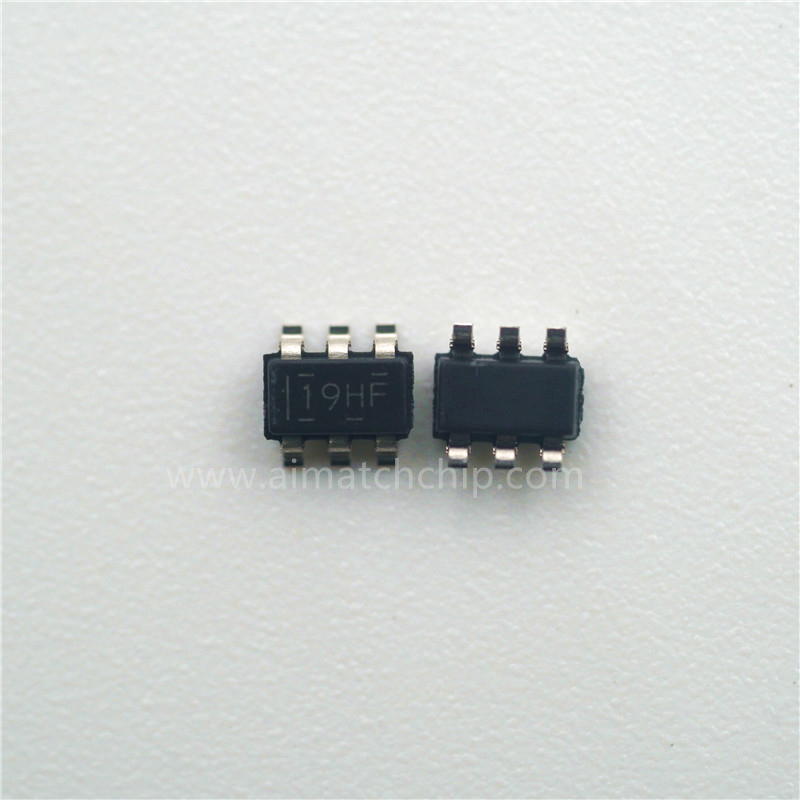

TPS22810DBVR
Texas Instruments
Product No:
TPS22810DBVR
Manufacturer:
Package:
SOT-23-6
Datasheet:
-
Description:
IC PWR SWITCH N-CHAN 1:1 SOT23-6
Quantity:
Delivery:
Payment:
In Stock : 317756
Minimum: 1 Multiples: 1
Qty
Unit Price
Ext Price
1
$0.142607
$0.142607
10
$0.124781
$1.24781
50
$0.106955
$5.34775
100
$0.098042
$9.8042
500
$0.093586
$46.793
1000
$0.089129
$89.129
Not the price you want? Send RFQ Now and we'll contact you ASAP.
Product Information
Parameter Info
User Guide
| Operating Temperature | -40°C ~ 105°C (TA) |
| Input Type | Non-Inverting |
| Output Type | N-Channel |
| Switch Type | General Purpose |
| Output Configuration | High Side |
| Voltage - Load | 2.7V ~ 18V |
| Ratio - Input:Output | 1:1 |
| Mounting Type | Surface Mount |
| Rds On (Typ) | 79mOhm |
| Product Status | Active |
| Current - Output (Max) | 2A |
| Supplier Device Package | SOT-23-6 |
| Number of Outputs | 1 |
| Series | - |
| Fault Protection | Over Temperature, UVLO |
| Package / Case | SOT-23-6 |
| Mfr | Texas Instruments |
| Features | Load Discharge, Slew Rate Controlled |
| Package | Tape & Reel (TR) |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Interface | On/Off |
| Base Product Number | TPS22810 |
