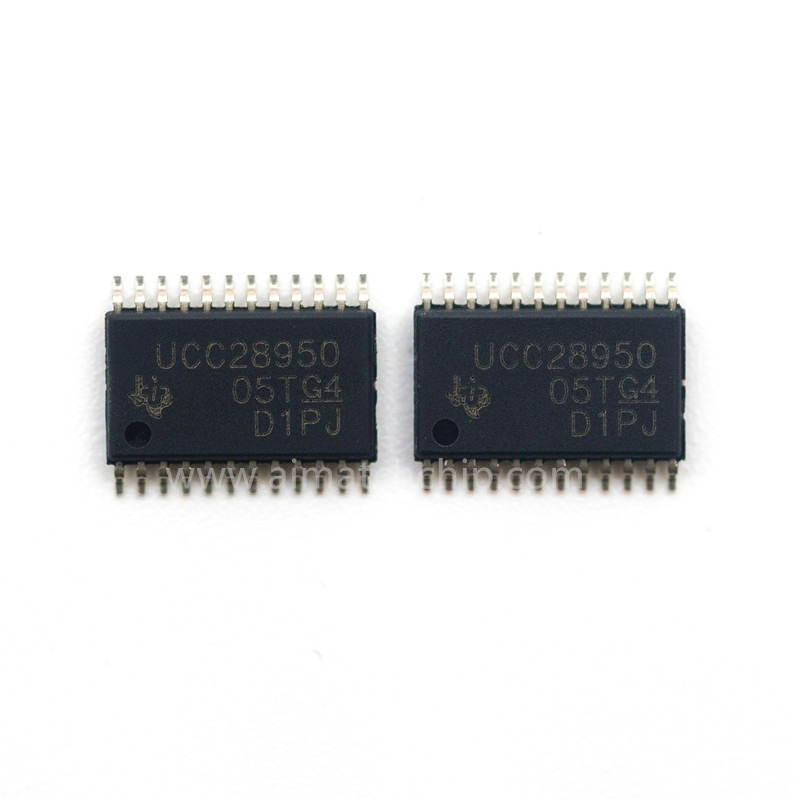

UCC28950PWR
Texas Instruments
Product No:
UCC28950PWR
Manufacturer:
Package:
24-TSSOP
Datasheet:
-
Description:
IC REG CTRLR FULL-BRIDGE 24TSSOP
Quantity:
Delivery:
Payment:
In Stock : 27237
Minimum: 1 Multiples: 1
Qty
Unit Price
Ext Price
1
$2.369829
$2.369829
10
$2.132846
$21.32846
50
$1.895863
$94.79315
100
$1.65888
$165.888
500
$1.611483
$805.7415
1000
$1.579886
$1579.886
Not the price you want? Send RFQ Now and we'll contact you ASAP.
Product Information
Parameter Info
User Guide
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Serial Interfaces | - |
| Synchronous Rectifier | Yes |
| Output Type | Transistor Driver |
| Output Configuration | Positive |
| Topology | Full-Bridge |
| Mounting Type | Surface Mount |
| Product Status | Active |
| Clock Sync | Yes |
| Supplier Device Package | 24-TSSOP |
| Number of Outputs | 6 |
| Duty Cycle (Max) | 95% |
| Series | - |
| Control Features | Dead Time Control, Enable, Frequency Control, Soft Start |
| Function | Step-Up/Step-Down |
| Output Phases | 1 |
| Package / Case | 24-TSSOP (0.173", 4.40mm Width) |
| Frequency - Switching | 50kHz ~ 1MHz |
| Mfr | Texas Instruments |
| Package | Tape & Reel (TR) |
| Voltage - Supply (Vcc/Vdd) | 8V ~ 17V |
| Base Product Number | UCC28950 |
