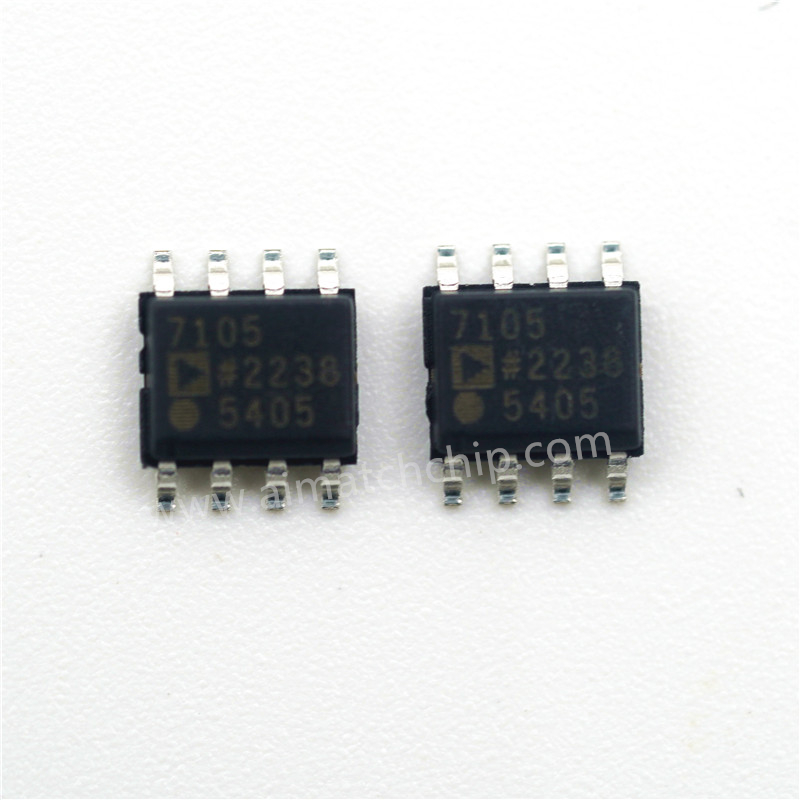

ADP7105ARDZ-R7
Analog Devices Inc.
Product No:
ADP7105ARDZ-R7
Manufacturer:
Package:
8-SOIC-EP
Datasheet:
Description:
IC REG LIN POS ADJ 500MA 8SOIC
Quantity:
Delivery:
Payment:
In Stock : 500
Minimum: 1 Multiples: 1
Qty
Unit Price
Ext Price
1
$4.827187
$4.827187
10
$4.344469
$43.44469
50
$3.86175
$193.0875
100
$3.379031
$337.9031
500
$3.282487
$1641.2435
1000
$3.218125
$3218.125
Not the price you want? Send RFQ Now and we'll contact you ASAP.
Product Information
Parameter Info
User Guide
| Operating Temperature | -40°C ~ 125°C |
| Current - Quiescent (Iq) | 900 µA |
| Output Type | Adjustable |
| Voltage - Input (Max) | 20V |
| PSRR | 80dB ~ 50dB (10kHz ~ 100kHz) |
| Number of Regulators | 1 |
| Current - Output | 500mA |
| Output Configuration | Positive |
| Current - Supply (Max) | 1.6 mA |
| Mounting Type | Surface Mount |
| Voltage - Output (Max) | 19V |
| Product Status | Active |
| Supplier Device Package | 8-SOIC-EP |
| Series | - |
| Control Features | Enable, Power Good, Under Voltage Lockout |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) Exposed Pad |
| Protection Features | Over Current, Over Temperature, Reverse Polarity |
| Mfr | Analog Devices Inc. |
| Voltage - Output (Min/Fixed) | 1.22V |
| Voltage Dropout (Max) | 0.55V @ 500mA |
| Package | Tape & Reel (TR) |
| Base Product Number | ADP7105 |
