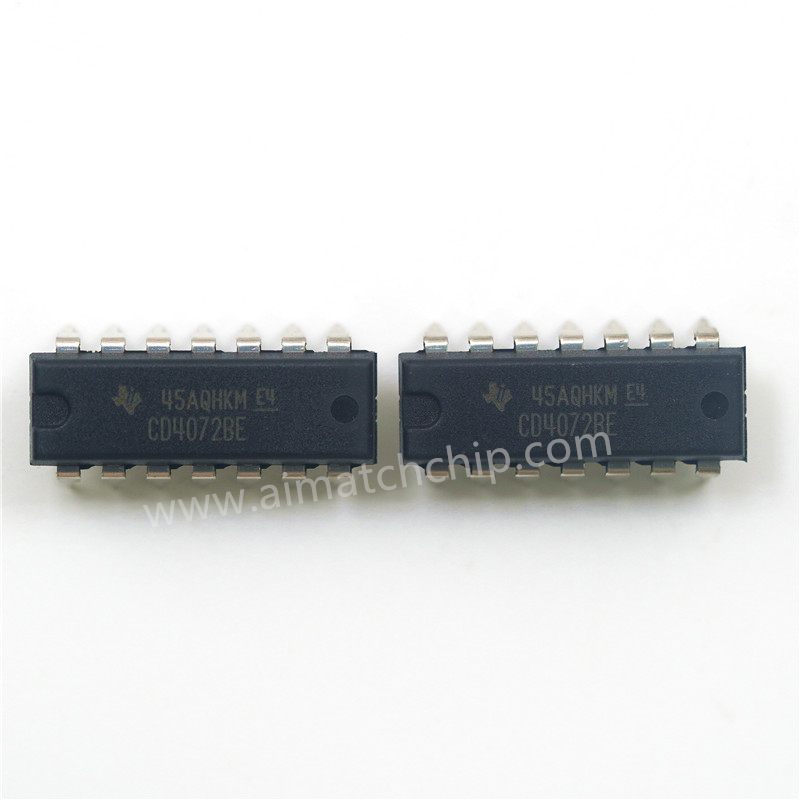

CD4072BE
Texas Instruments
Product No:
CD4072BE
Manufacturer:
Package:
14-PDIP
Datasheet:
-
Description:
IC GATE OR 2CH 4-INP 14DIP
Quantity:
Delivery:
Payment:
In Stock : 2996
Minimum: 1 Multiples: 1
Qty
Unit Price
Ext Price
1
$0.495566
$0.495566
10
$0.43362
$4.3362
50
$0.371674
$18.5837
100
$0.340701
$34.0701
500
$0.325215
$162.6075
1000
$0.309729
$309.729
Not the price you want? Send RFQ Now and we'll contact you ASAP.
Product Information
Parameter Info
User Guide
| Operating Temperature | -55°C ~ 125°C |
| Max Propagation Delay @ V, Max CL | 90ns @ 15V, 50pF |
| Logic Type | OR Gate |
| Mounting Type | Through Hole |
| Input Logic Level - Low | 1.5V ~ 4V |
| Product Status | Active |
| Supplier Device Package | 14-PDIP |
| Series | 4000B |
| Package / Case | 14-DIP (0.300", 7.62mm) |
| Voltage - Supply | 3V ~ 18V |
| Input Logic Level - High | 3.5V ~ 11V |
| Number of Inputs | 4 |
| Mfr | Texas Instruments |
| Features | - |
| Number of Circuits | 2 |
| Package | Tube |
| Current - Quiescent (Max) | 1 µA |
| Base Product Number | CD4072 |
| Current - Output High, Low | 3.4mA, 3.4mA |
