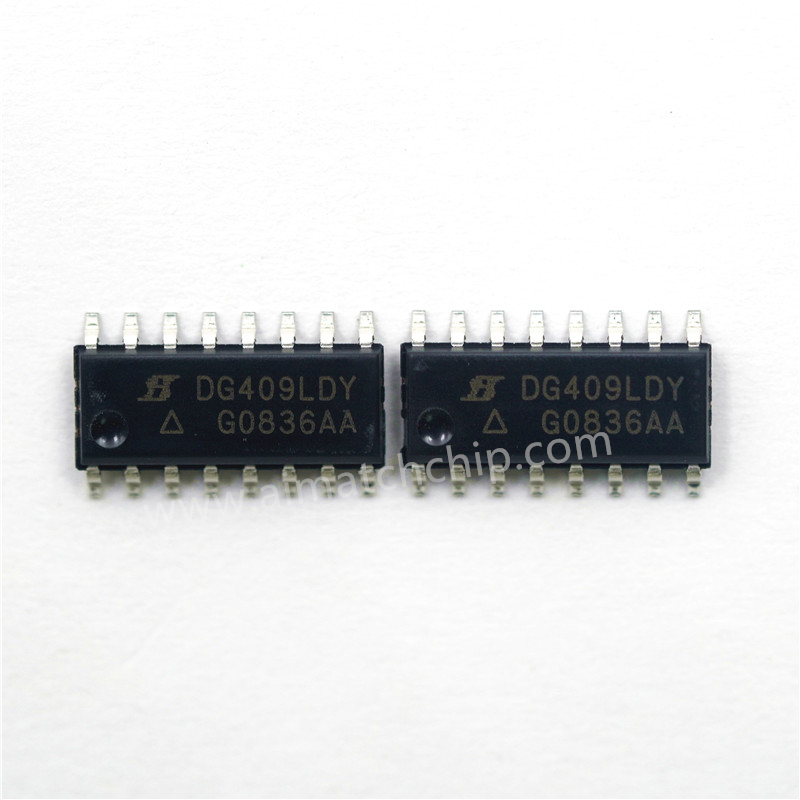

DG409LDY
Vishay Siliconix
Product No:
DG409LDY
Manufacturer:
Package:
16-SOIC
Datasheet:
Description:
IC SWITCH SP4T X 2 29OHM 16SOIC
Quantity:
Delivery:
Payment:
In Stock : 1094
Minimum: 1 Multiples: 1
Qty
Unit Price
Ext Price
1
$1.125
$1.125
10
$1.0125
$10.125
50
$0.9
$45
100
$0.7875
$78.75
500
$0.765
$382.5
1000
$0.75
$750
Not the price you want? Send RFQ Now and we'll contact you ASAP.
Product Information
Parameter Info
User Guide
| Operating Temperature | -40°C ~ 85°C (TA) |
| Current - Leakage (IS(off)) (Max) | 1nA |
| Crosstalk | -82dB @ 100kHz |
| -3db Bandwidth | - |
| Channel-to-Channel Matching (ΔRon) | 1Ohm |
| Mounting Type | Surface Mount |
| Product Status | Obsolete |
| Voltage - Supply, Dual (V±) | ±3V ~ 6V |
| Supplier Device Package | 16-SOIC |
| Voltage - Supply, Single (V+) | 2V ~ 12V |
| Series | - |
| Channel Capacitance (CS(off), CD(off)) | 7pF, 20pF |
| Package / Case | 16-SOIC (0.154", 3.90mm Width) |
| On-State Resistance (Max) | 29Ohm |
| Switch Circuit | SP4T |
| Mfr | Vishay Siliconix |
| Charge Injection | 1pC |
| Multiplexer/Demultiplexer Circuit | 4:1 |
| Number of Circuits | 2 |
| Package | Tube |
| Switch Time (Ton, Toff) (Max) | 55ns, 25ns |
| Base Product Number | DG409 |
