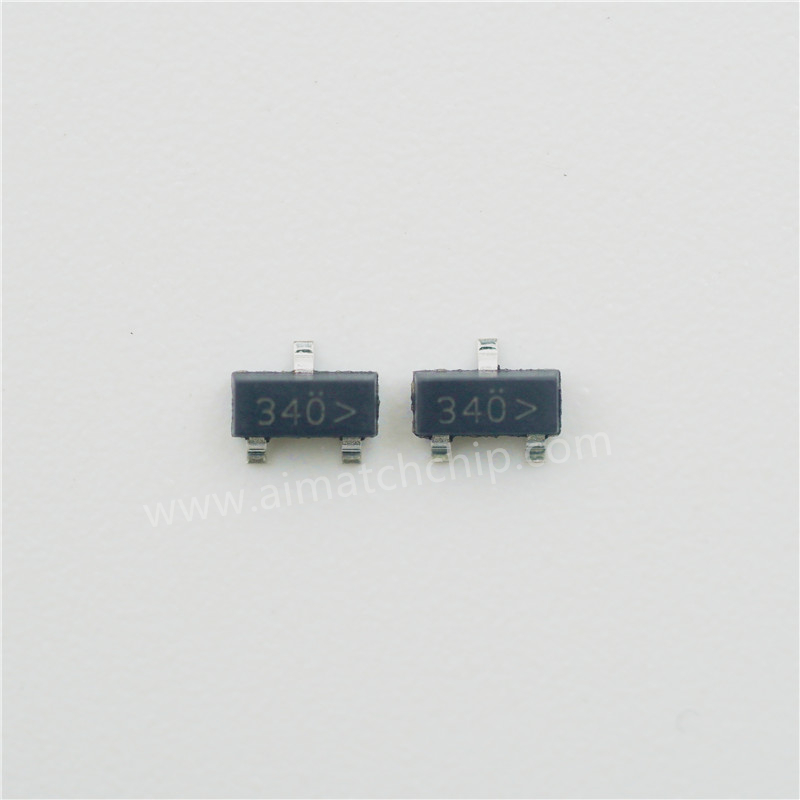

FDN340P
onsemi
Product No:
FDN340P
Manufacturer:
Package:
SOT-23-3
Datasheet:
Description:
MOSFET P-CH 20V 2A SUPERSOT3
Quantity:
Delivery:
Payment:
In Stock : 218531
Minimum: 1 Multiples: 1
Qty
Unit Price
Ext Price
1
$0.1056
$0.1056
10
$0.0924
$0.924
50
$0.0792
$3.96
100
$0.0726
$7.26
500
$0.0693
$34.65
1000
$0.066
$66
Not the price you want? Send RFQ Now and we'll contact you ASAP.
Product Information
Parameter Info
User Guide
| Operating Temperature | -55°C ~ 150°C (TJ) |
| FET Feature | - |
| Input Capacitance (Ciss) (Max) @ Vds | 779 pF @ 10 V |
| FET Type | P-Channel |
| Gate Charge (Qg) (Max) @ Vgs | 10 nC @ 4.5 V |
| Mounting Type | Surface Mount |
| Rds On (Max) @ Id, Vgs | 70mOhm @ 2A, 4.5V |
| Product Status | Active |
| Vgs(th) (Max) @ Id | 1.5V @ 250µA |
| Supplier Device Package | SOT-23-3 |
| Drain to Source Voltage (Vdss) | 20 V |
| Power Dissipation (Max) | 500mW (Ta) |
| Series | PowerTrench® |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Technology | MOSFET (Metal Oxide) |
| Current - Continuous Drain (Id) @ 25°C | 2A (Ta) |
| Mfr | onsemi |
| Vgs (Max) | ±8V |
| Drive Voltage (Max Rds On, Min Rds On) | 2.5V, 4.5V |
| Package | Tape & Reel (TR) |
| Base Product Number | FDN340 |
