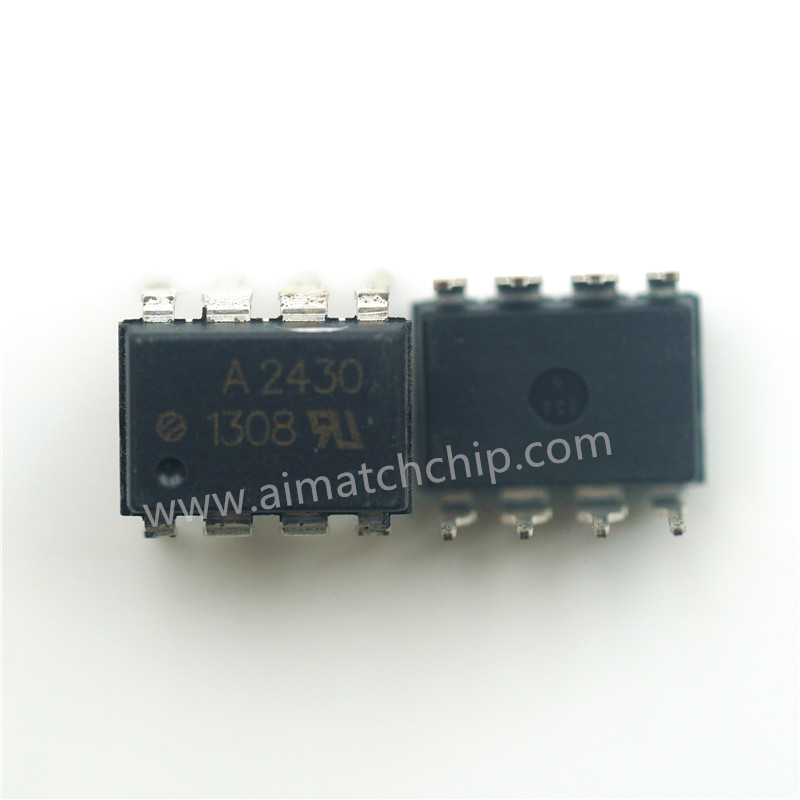

HCPL-2430-000E
Broadcom Limited
Product No:
HCPL-2430-000E
Manufacturer:
Package:
8-DIP
Datasheet:
-
Description:
OPTOISO 3.75KV 2CH PSH PULL 8DIP
Quantity:
Delivery:
Payment:
In Stock : 1105
Minimum: 1 Multiples: 1
Qty
Unit Price
Ext Price
1
$12.060562
$12.060562
10
$10.854506
$108.54506
50
$9.64845
$482.4225
100
$8.442394
$844.2394
500
$8.201182
$4100.591
1000
$8.040375
$8040.375
Not the price you want? Send RFQ Now and we'll contact you ASAP.
Product Information
Parameter Info
User Guide
| Operating Temperature | -40°C ~ 85°C |
| Input Type | DC |
| Inputs - Side 1/Side 2 | 2/0 |
| Rise / Fall Time (Typ) | 20ns, 10ns |
| Output Type | Push-Pull, Totem Pole |
| Common Mode Transient Immunity (Min) | 1kV/µs |
| Voltage - Isolation | 3750Vrms |
| Mounting Type | Through Hole |
| Product Status | Active |
| Supplier Device Package | 8-DIP |
| Series | - |
| Data Rate | 40MBd |
| Package / Case | 8-DIP (0.300", 7.62mm) |
| Number of Channels | 2 |
| Voltage - Supply | 4.75V ~ 5.25V |
| Mfr | Broadcom Limited |
| Voltage - Forward (Vf) (Typ) | 1.3V |
| Package | Tube |
| Propagation Delay tpLH / tpHL (Max) | 55ns, 55ns |
| Current - Output / Channel | 25 mA |
| Current - DC Forward (If) (Max) | 10mA |
| Base Product Number | HCPL-2430 |
