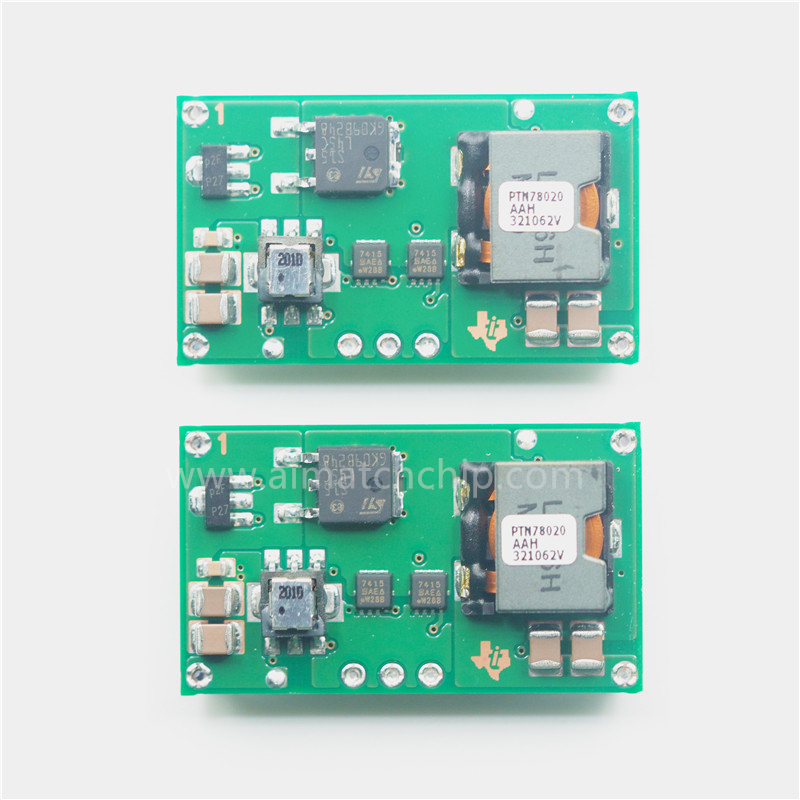

PTN78020AAH
Texas Instruments
Product No:
PTN78020AAH
Manufacturer:
Package:
-
Datasheet:
-
Description:
DC DC CONVERTER -15 TO -3V
Quantity:
Delivery:
Payment:
In Stock : 92
Minimum: 1 Multiples: 1
Qty
Unit Price
Ext Price
1
$42.7959
$42.7959
10
$38.51631
$385.1631
50
$34.23672
$1711.836
100
$29.95713
$2995.713
500
$29.101212
$14550.606
1000
$28.5306
$28530.6
Not the price you want? Send RFQ Now and we'll contact you ASAP.
Product Information
Parameter Info
User Guide
| Operating Temperature | -40°C ~ 85°C |
| Applications | ITE (Commercial) |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Input (Max) | 29V |
| Voltage - Output 1 | -15 ~ -3V |
| Size / Dimension | 1.50" L x 0.87" W x 0.36" H (38.1mm x 22.1mm x 9.1mm) |
| Mounting Type | Through Hole |
| Product Status | Active |
| Current - Output (Max) | 4A |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 9V |
| Series | PTN78020A (25W) |
| Type | Non-Isolated PoL Module |
| Package / Case | 7-DIP Module |
| Efficiency | 87% |
| Mfr | Texas Instruments |
| Features | OCP, OTP, UVLO |
| Package | Tray |
| Base Product Number | PTN78020 |
