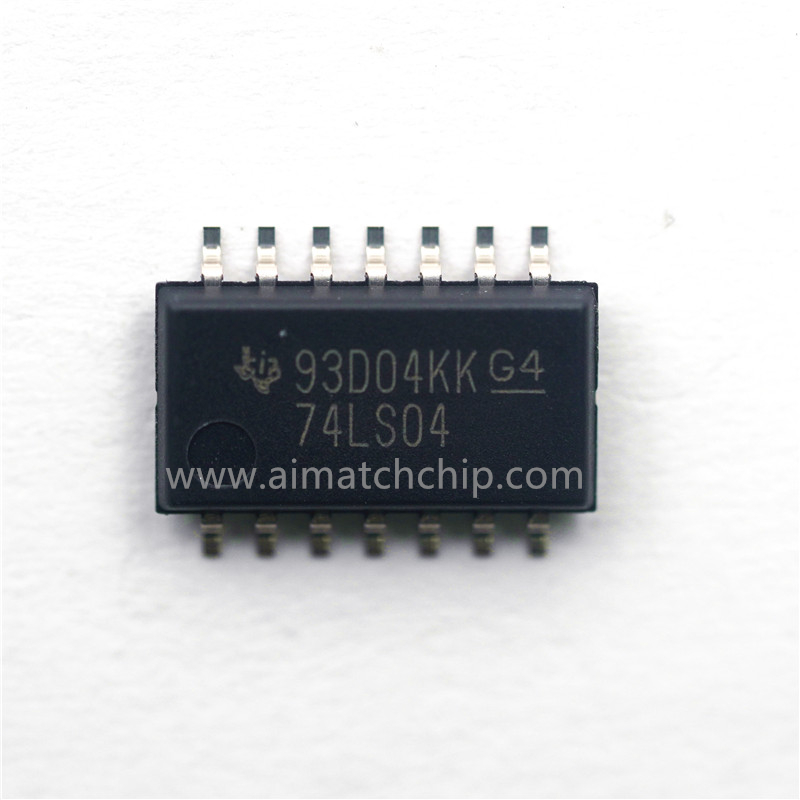

SN74LS04NSR
Texas Instruments
Product No:
SN74LS04NSR
Manufacturer:
Package:
14-SO
Datasheet:
-
Description:
IC INVERTER 6CH 1-INP 14SOP
Quantity:
Delivery:
Payment:
In Stock : 7115
Minimum: 1 Multiples: 1
Qty
Unit Price
Ext Price
1
$0.226286
$0.226286
10
$0.198
$1.98
50
$0.169714
$8.4857
100
$0.155571
$15.5571
500
$0.1485
$74.25
1000
$0.141429
$141.429
Not the price you want? Send RFQ Now and we'll contact you ASAP.
Product Information
Parameter Info
User Guide
| Operating Temperature | 0°C ~ 70°C |
| Max Propagation Delay @ V, Max CL | 15ns @ 5V, 15pF |
| Logic Type | Inverter |
| Mounting Type | Surface Mount |
| Input Logic Level - Low | 0.8V |
| Product Status | Active |
| Supplier Device Package | 14-SO |
| Series | 74LS |
| Package / Case | 14-SOIC (0.209", 5.30mm Width) |
| Voltage - Supply | 4.75V ~ 5.25V |
| Input Logic Level - High | 2V |
| Number of Inputs | 1 |
| Mfr | Texas Instruments |
| Features | - |
| Number of Circuits | 6 |
| Package | Tape & Reel (TR) |
| Base Product Number | 74LS04 |
| Current - Output High, Low | 400µA, 8mA |
