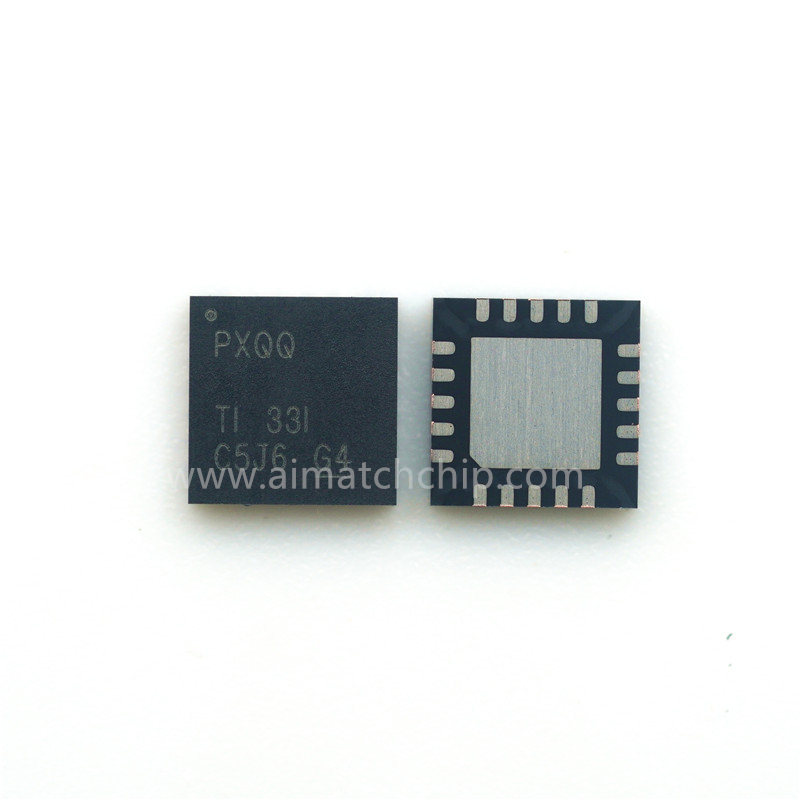

TPS7A3301RGWR
Texas Instruments
Product No:
TPS7A3301RGWR
Manufacturer:
Package:
20-VQFN (5x5)
Datasheet:
Description:
IC REG LIN NEG ADJ 1A 20VQFN
Quantity:
Delivery:
Payment:
In Stock : 15896
Minimum: 1 Multiples: 1
Qty
Unit Price
Ext Price
1
$2.1888
$2.1888
10
$1.96992
$19.6992
50
$1.75104
$87.552
100
$1.53216
$153.216
500
$1.488384
$744.192
1000
$1.4592
$1459.2
Not the price you want? Send RFQ Now and we'll contact you ASAP.
Product Information
Parameter Info
User Guide
| Operating Temperature | -40°C ~ 125°C |
| Current - Quiescent (Iq) | 100 µA |
| Output Type | Adjustable |
| Voltage - Input (Max) | -36V |
| PSRR | 72dB (10kHz) |
| Number of Regulators | 1 |
| Current - Output | 1A |
| Output Configuration | Negative |
| Current - Supply (Max) | 950 µA |
| Mounting Type | Surface Mount |
| Voltage - Output (Max) | -33V |
| Product Status | Active |
| Supplier Device Package | 20-VQFN (5x5) |
| Series | - |
| Control Features | Enable, Soft Start |
| Package / Case | 20-VQFN Exposed Pad |
| Protection Features | Over Current, Over Temperature |
| Mfr | Texas Instruments |
| Voltage - Output (Min/Fixed) | -1.18V |
| Voltage Dropout (Max) | 0.8V @ 1A |
| Package | Tape & Reel (TR) |
| Base Product Number | TPS7A3301 |
