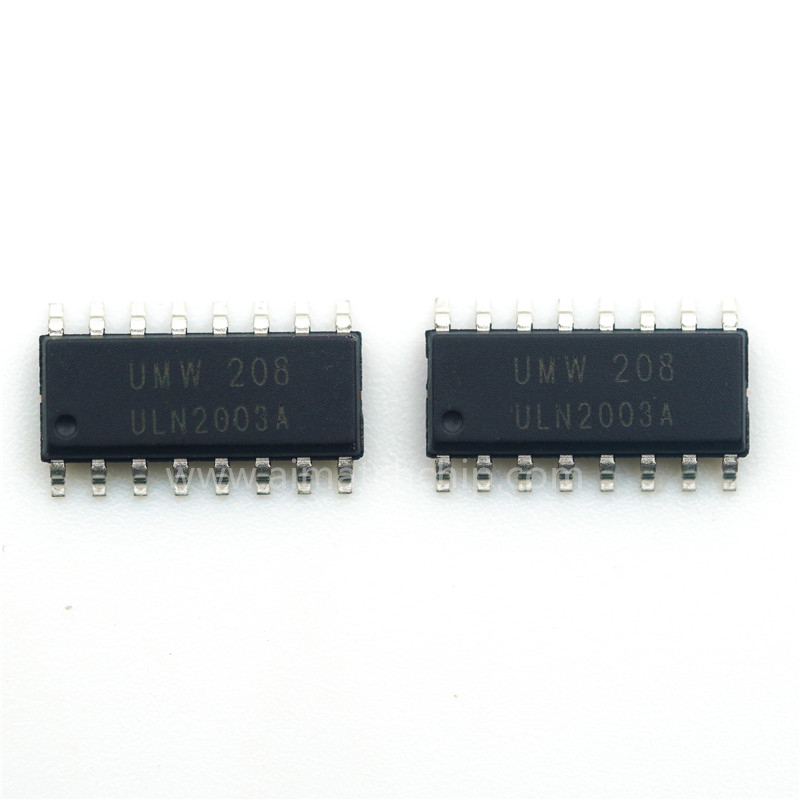

ULN2003A
STMicroelectronics
Product No:
ULN2003A
Manufacturer:
Package:
16-DIP
Datasheet:
Description:
IC PWR RELAY 7NPN 1:1 16DIP
Quantity:
Delivery:
Payment:
In Stock : 14225
Minimum: 1 Multiples: 1
Qty
Unit Price
Ext Price
1
$0.140325
$0.140325
10
$0.122784
$1.22784
50
$0.105243
$5.26215
100
$0.096473
$9.6473
500
$0.092088
$46.044
1000
$0.087703
$87.703
Not the price you want? Send RFQ Now and we'll contact you ASAP.
Product Information
Parameter Info
User Guide
| Operating Temperature | -40°C ~ 85°C (TA) |
| Input Type | Inverting |
| Output Type | Darlington |
| Switch Type | Relay, Solenoid Driver |
| Output Configuration | Low Side |
| Voltage - Load | 50V (Max) |
| Ratio - Input:Output | 1:1 |
| Mounting Type | Through Hole |
| Rds On (Typ) | - |
| Product Status | Active |
| Current - Output (Max) | 500mA |
| Supplier Device Package | 16-DIP |
| Number of Outputs | 7 |
| Series | ULx200xA |
| Fault Protection | - |
| Package / Case | 16-DIP (0.300", 7.62mm) |
| Mfr | STMicroelectronics |
| Features | - |
| Package | Tube |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Interface | Parallel |
| Base Product Number | ULN2003 |
